Processor
Identification
| Processor Type | Manufacturer and Features |
View Heatsink / Chip Side |
View Pins / Case Side |
| FC-PGA2 Pentium IV | Intel Only. FC-PGA2 packages are similar to the FC-PGA package type, except these processors also have an Integrated Heat Spreader (IHS) that helps heatsink dissipation to a properly attached fan heatsink. The Package is used Pentium 4 processor (478 pins). |
|
|

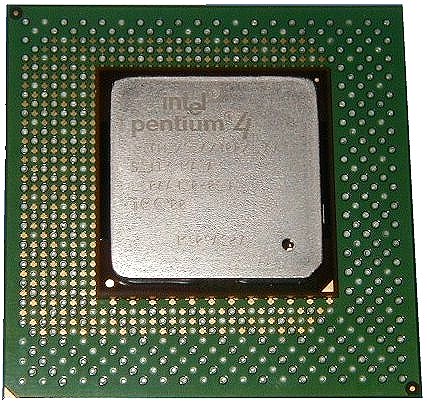

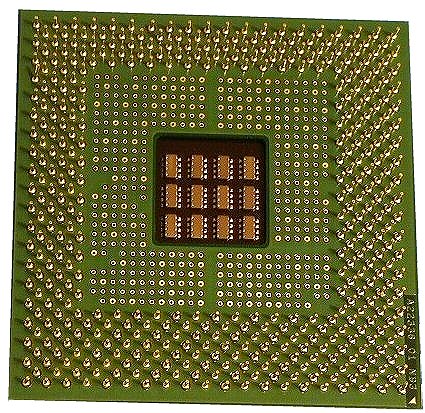

| OOI Package Type 423 | Intel Only. OOI is short for OLGA. OLGA stands for Organic Land Grid Array. The OOI then has an Integrated Heat Spreader (IHS) that helps heatsink dissipation to a properly attached fan heatsink. The OOI is used by the Pentium 4 processor, which has 423 pins. |
|
|
|
PGA Package Type 603/4 |

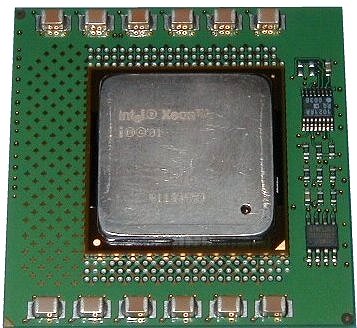

Intel Only. Pin Grid Array 603/4. To improve thermal conductivity, the PGA has an Integrated Heat Spreader (IHS) that helps heatsink dissipation to a properly attached fan heatsink. The PGA package is used by the Intel Xeon™ processor, which has 603/4 pins |
|
|

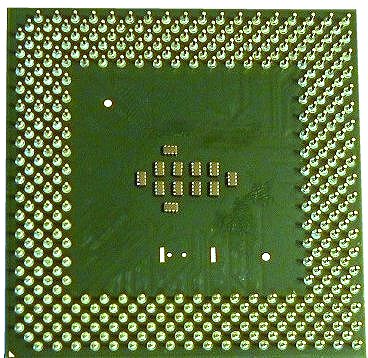

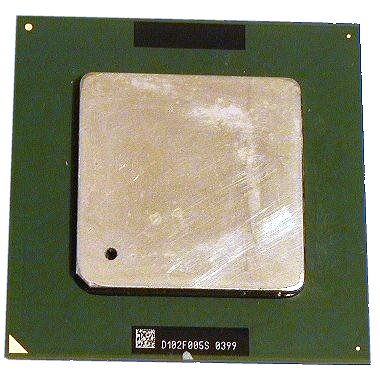

| FC-PGA2 Pentium III | Intel Only. FC-PGA2 packages are similar to the FC-PGA package type, except these processors also have an Integrated Heat Spreader (IHS) that helps heatsink dissipation to a properly attached fan heatsink. The FC-PGA2 package is used in Pentium III and Celeron processor (370 pins) |
|
|
|
AMD Athlon XP |
AMD Only. |
|
|
|
AMD Duron |
AMD Only. |
|
|
| Mobile PGA2 | Intel Mobile processor Pin Grid Array 2 (PGA2) for notebooks. Uses SpeedStep® Technology to have low power / speed operating modes. Uses BGA2 (below) mounted on an intermidate sub-straight with pins. |
|
|
| Mobile BGA2 | Intel Mobile processor Ball Grid Array 2 (BGA2) for notebooks. Designed to be soldered directly to circuit board. Uses SpeedStep® Technology. Has solder balls NOT Pins. |
|
|
| Mobile Cartridge-2 ( MMC2 ) | Intel Mobile Module Cartridge-2 (MMC2), It will fit brands like DELL, Gateway, Compaq, IBM Thinkpad, Toshiba, and HP. |
|
|
| Mobile Cartridge-1 ( MMC1 ) | Intel Mobile Module Cartridge-1 (MMC1), Gateway Solo 5150 and a Solo 3150, Dell Latitude CP, as well as IBM, Micron, Toshiba and others. |
|
|
|
Slot 1, Secc 1 |
Intel Only. Pentium®II processors to 500MHz |
|
|
| Slot 1, Secc 2 | Intel Only. Pentium®II Processors 350 to 450MHz, Pentium®III processors to 1GHz. 100 & 133MHz FSB |
|
|
| Slot 1, SEPP | Intel Only. Celeron™ processors up to 466MHz, 66MHz FSB 16 or 128Kb cache |
|
|
| Slot A | AMD Only. ATHLON processor with speeds up to 800Mhz. 100MHz FSB. 512Kb Cache |
|
|
| Socket A |
AMD Only. ATHLON ThunderBird Duron |
|
|
| Socket 370 PPGA |
Intel / Cyrix Intel Celeron™ up to 533MHz. |
|
|
| Socket 370 FlipChip | Intel Only. Pentium®III and Celeron™ Processors with 265Kb / 128 Kb on-chip cache respectively. Front side Bus speeds of 66/100&133MHz Note: The motherboard MUST support FlipChip Socket 370 PPGA is NOT the same! |
|
|
| Socket 8 | Intel Only. 200MHz max speed with 66MHz FSB available with 256, 512 and 1Mb Cache. |
|
|
| Socket 7 | Intel /AMD /Cyrix / UMC / SGS / Ti / IBM. Single or Dual voltage processors 166 to 600MHz. 100MHz FSB. This socket has 321 Pins |
|
|
| Socket 5 |
Intel /AMD /Cyrix / UMC / SGS / Ti / IBM.
Single voltage processors speeds 75 to 200MHz |
|
|
| Socket 4 |
Intel Only.
First Pentium® processor. Only produced in 60 & 66MHz versions. |
|
|
| Socket 3 | Intel / AMD / SGS / IBM / Cyrix. Intel 486 ( Cyrix 586 ) processors. speeds 20 to 133HMz. |
|
|
