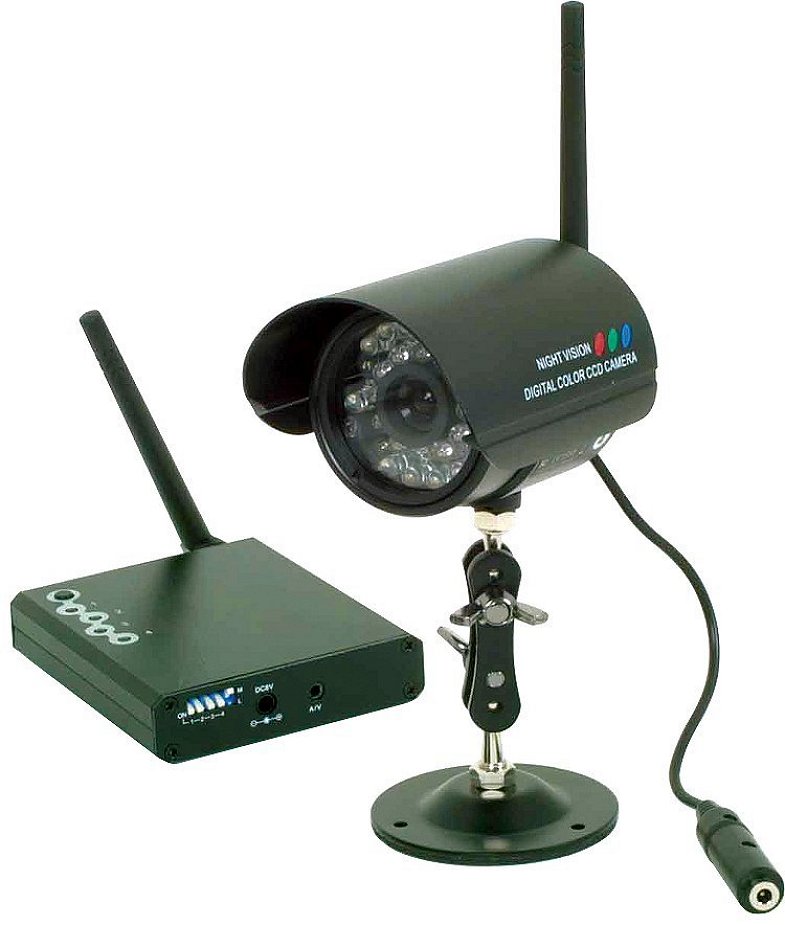

Sentient 2.4GHz Wireless Hi-Resolution CCTV Kit


Sentient 2.4GHz Wireless Hi-Resolution CCTV Kit

High quality colour pictures and audio with a long night vision range.
Suitable for monitoring open areas indoor and outdoor, day or night.

  • Day and night wireless security camera
  • 1/4-inch Sharp CCD with 420 TV lines
  • 26 Infrared LEDs for night-time vision
  • Weather-proof design for outdoor usage
  • 4-channel available to avoid interference
  • Channel scan and channel skip for multi-camera usage
  • Built-in microphone for audio monitoring
  • 100m-transmission distance**
  • Effective night vision range: upto 15m
  • The kit has a built in 1/4-inch CCD image sensor and microphone and provides 300K pixels high quality display and highly sensitive audio monitoring.
  • You can not only see but also hear what is happening.
  • For day and night surveillance, the camera is built in 26 infra-red lights which provide a minimum 15m night vision range.
  • The night vision function will turn on or off automatically when environment gets dark or bright.
  • You could watch the situation from up to 4 different cameras via one receiver by changing channel manually or scanning channel automatically.
  • In channel scan mode, all channels will display one by one looping in turn every 5 seconds.
 Box picture -Sentient 2.4GHz Wireless Hi-Resolution CCTV Kit - Box

  Sentient 2.4GHz Wireless Hi-Resolution CCTV Kit - Box
Current Retail price £79.99

**Note : The stated range "XXm-transmission range in open space and clear line of sight"  is the only true measurement of distance that can be given. Passing signals through Walls and other materials is not quantifiable as the composition of the material and other factors (such as moisture metal content of a wall) will affect the attenuation of the signal. The proximity to similar ambient frequencies in the location may also affect the transmission range and / or signal quality.
Digital transceivers are better at eliminating noise but still require a basic good quality signal.

Examples -

  1. Plasterboard partition walls are commonly backed with Aluminium foil as a damp proofing which will block wireless signals 100%.
  2. Passing through a wall obliquely can double its effective thickness and it's also not difficult unwittingly to position the console such that the signal may need to pass along the whole length of a wall (eg placed on a window sill), a situation that may sometimes give zero reception even in a room which has otherwise acceptable or good reception.
  3. Some 'high-tech' glass is coated with a thin metallic film, for example to reduce solar glare, may weaken or block wireless signals, Example Car electrically heated windscreen.
  4. Prevailing weather conditions. Most obviously, the range for good reception may be significantly reduced during heavy rain or hail, but might also be affected to a lesser extent in other conditions such as fog.
  5. Objects around the console . This is especially true of metal or metal-coated objects, such as filing cabinets, refrigerators etc, but can even include humans. Sometimes even standing near transmitter or receiver can influence how well the signal is received.
  6. Interference. Other electrical appliances can generate radio signals in the same frequency band. Sometimes this may be spill-over interference from an appliance operating on a specific nearby frequency such as a mobile or cordless phone, Internet routers. But there are also more general radiators of radio-frequency interference such as fluorescent light fittings or appliances like PCs with a plastic (or no!) case.
  7. Height relationship of the aerials. The situation where the transmitter is substantially above the receiver unit (ie at a steep angle of elevation) should be avoided, because signal transmission won't be efficient in this configuration. Reception is likely to be best when both aerials are at roughly the same height, or when any angle of elevation between the two is relatively shallow. In practice, a good configuration might be for the height to be a minimum four feet, This arrangement, while by no means definitive, should help to minimise the effects of potential obstacles such as dense vegetation, people, chain-link fences.

This stock is classified in "As New" condition, but the external packaging may be tatty.  These units are either lost in transit or user 7 Day returns (usually because customer has ordered wrong thing, or has been sent wrong item or item missing from box....)  All items are retested, re-inspected, any missing items replaced and repacked to ensure they are in "As New" condition.
We offer a 90 Day RTB Warranty on this item.

Technical specifications:

Camera specifications:

Sensor type:

Sharp Colour CCD

Sensor size:

1/4 inch / 6.35mm

Viewing angle:

30

Lens focus:

6.0mm

Electronic shutter:

1/50 second - 1/100000 second

TV system Scanning frequency:

PAL 50Hz

Resolution:

420 TV lines

Video output:

1Vp-p 75?

Number of LEDs:

26

Night vision range:

15m

Minimum illumination:

1 lux / F2.0

Signal noise ratio:

>48dB

Noise:

< 0.03% peak value

Transmission frequency:

2.4GHz

Channel selection:

4

Transmission range:

100m (clear line of sight)

RF output power:

10mW

Audio:

No

Power consumption:

120 mA (IR off) / 270mA (IR on)

Power supply:

DC 12V (included)

Output power:

6W

Gain control:

automatic

Indoor / Outdoor use:

Yes

IP rating:

54

Wireless:

Yes

Video connections:

Wireless

Operating temperature:

-10C - +50C

Dimensions: (w) x (l) x (Dia.):

61(w) x 61(l) x 96(dia.)mm

Weight:

350g

Receiver specifications:

Transmission frequency:

2.4GHz

Channel selection:

4

Receiving sensitivity:

-85dBm

Video format:

PAL

Video input/output:

1Vp-p / 75?

Audio input/output:

1Vp-p / 600?

Antenna:

SMA universal antenna

Audio bandwidth:

100 - 20kHz

Operating power:

DC 8 V

Power consumption:

180mA

Video connections:

RCA

Operating temperature:

-10C - +50C

Dimensions:

78(w) x 68(l) x 16(h)mm

Weight:

200g

A Vat invoice will be provided with Vat Shown separately.  Ref : CCTVCamWiN12CX
 EAN 5026686047455
