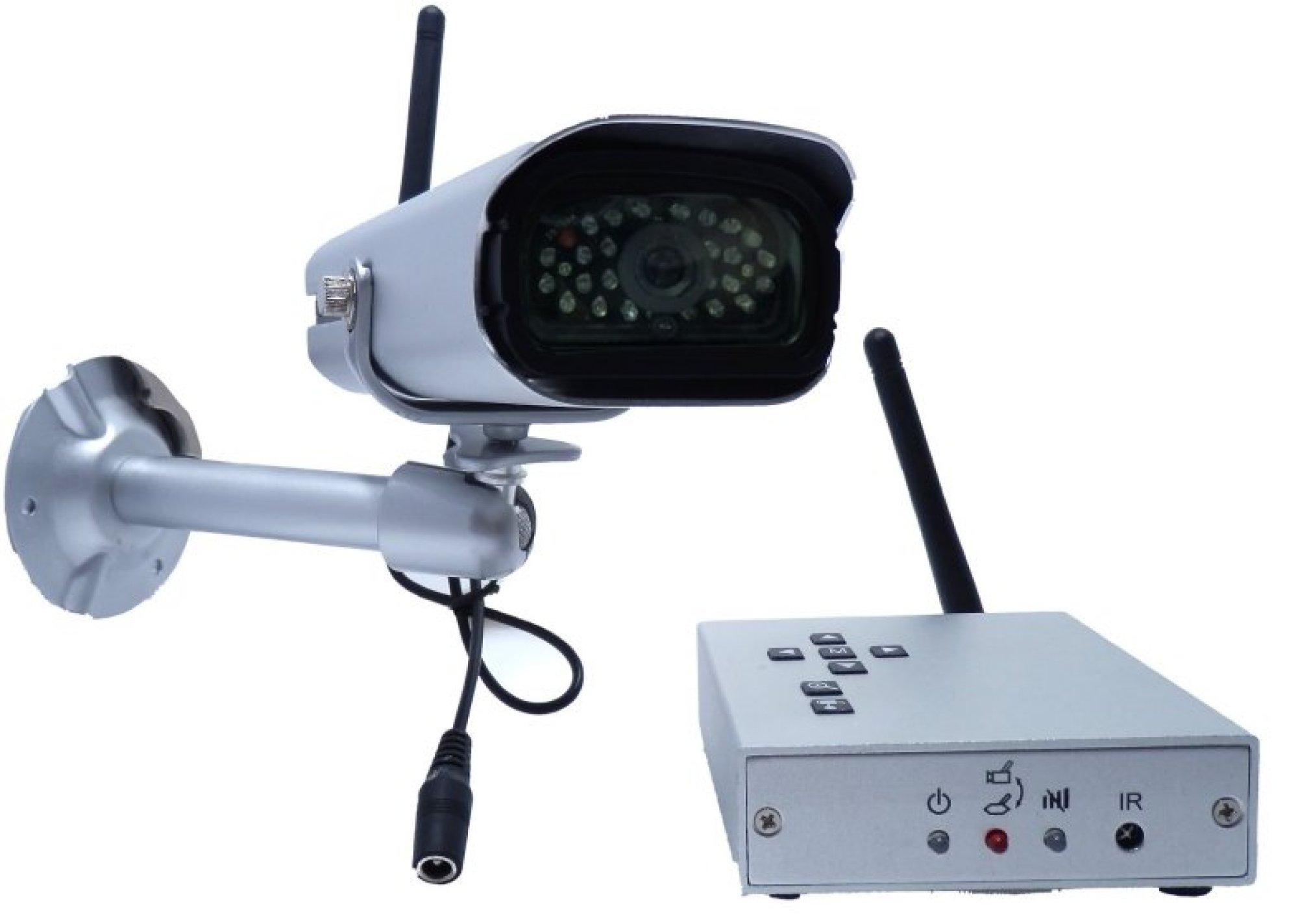

450 TV line Colour DIGITAL Wireless
Camera with Receiver & USB to PC.
|
|
|
- Latest technology DIGITAL wireless camera with receiver
- Digital wireless technology for interference free signal
- Quality colour images with sound
- Transmits further and clearer than analogue wireless - range up to 200m
- Secure wireless transmission
is totally private
- Automatic night-vision function on camera - distance up to 8m
- Weatherproof for use outdoors to IP44 (sheltered use)
- Built-in camera microphone
- Easy set up and installation
- Receiver has Standard Video output AND USB to PC interface, Software
included to allow upto 4 Cameras to interface to one receiver even RECORD to the PC.
(Note: There are similar cameras on the market Same packing etc that DO NOT HAVE these features).
- With upto 4 cameras on 1 receiver the Analog video output can be selected on the
receiver to be:-
- One camera
- Scan between cameras
- Quad camera view WITHOUT the need for any other hardware
|
|
Specifications: |
Sensor type: |
Colour CMOS |
Sensor size: |
1/4 inch / 6.35mm |
Viewing angle: |
40 |
Lens focus: |
F3.6 |
Resolution: |
450 TV lines |
Number of LED's: |
24 |
Night vision range: |
8m |
Minimum illumination: |
8-20 Lux |
Transmission frequency: |
2.4GHz, 4 Channels |
Transmission range: |
200m (clear line of sight) |
Audio: |
Yes |
Power consumption: |
230 mA |
Power supply: |
5V DC / 1A |
Indoor/Outdoor use: |
Yes to IP44 |
Video connections: |
Secure Digital Wireless |
Receiver specifications |
Transmission Frequency |
2.4Ghz |
Power supply |
5V 1A |
Power consumption |
300mA |
Video Connections |
RCA & USB to PC |
|
|
|

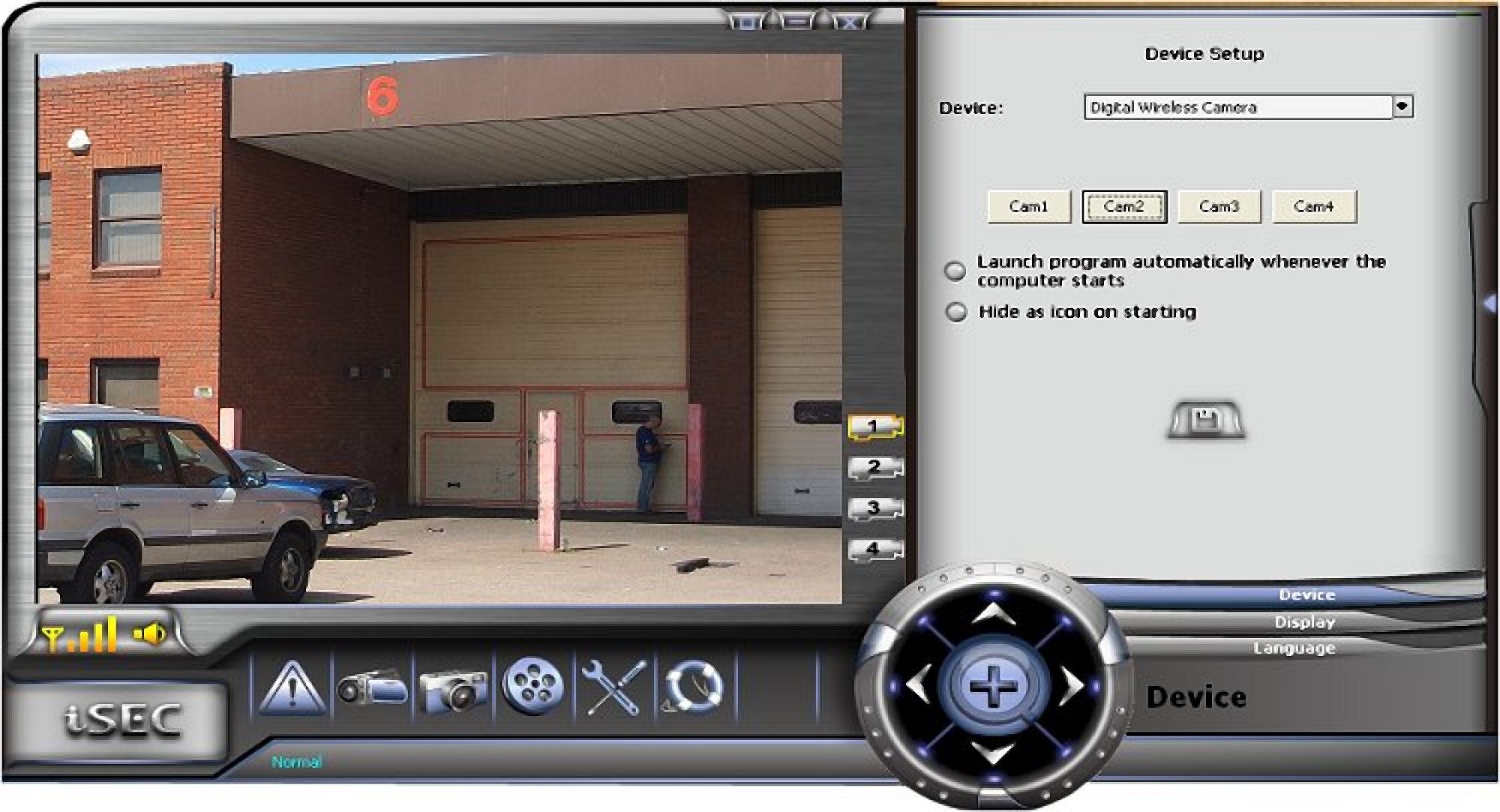

Camera image Viewed on the PC, No additional hardware required
|
|
**Note
: The stated range "XXm-transmission range in open space and clear line of sight" is the only true measurement of distance that can
be given. Passing signals through Walls and other materials is not quantifiable as the composition of the material and other factors (such
as moisture metal content of a wall) will affect the attenuation of the signal. The proximity to similar ambient frequencies in the location
may also affect the transmission range and / or signal quality.
Digital transceivers are better at eliminating noise but still require a basic good quality signal.
Examples -
- Plasterboard partition walls are commonly backed with Aluminium foil as a damp proofing which will block wireless signals
100%.
- Passing through a wall obliquely can double its effective thickness and it's also not difficult unwittingly to position
the console such that the signal may need to pass along the whole length of a wall (eg placed on a window sill), a situation that may
sometimes give zero reception even in a room which has otherwise acceptable or good reception.
- Some 'high-tech' glass is coated with a thin metallic film, for example to reduce solar glare, may weaken or block
wireless signals, Example Car electrically heated windscreen.
- Prevailing weather conditions. Most obviously, the range for good reception may be significantly reduced during heavy
rain or hail, but might also be affected to a lesser extent in other conditions such as fog.
- Objects around the console . This is especially true of metal or metal-coated objects, such as filing cabinets, refrigerators
etc, but can even include humans. Sometimes even standing near transmitter or receiver can influence how well the signal is received.
- Interference. Other electrical appliances can generate radio signals in the same frequency band. Sometimes this may
be spill-over interference from an appliance operating on a specific nearby frequency such as a mobile or cordless phone, Internet routers.
But there are also more general radiators of radio-frequency interference such as fluorescent light fittings or appliances like PCs with
a plastic (or no!) case.
- Height relationship of the aerials. The situation where the transmitter is substantially above the receiver unit (ie
at a steep angle of elevation) should be avoided, because signal transmission won't be efficient in this configuration. Reception is likely
to be best when both aerials are at roughly the same height, or when any angle of elevation between the two is relatively shallow. In
practice, a good configuration might be for the height to be a minimum four feet, This arrangement, while by no means definitive, should
help to minimise the effects of potential obstacles such as dense vegetation, people, chain-link fences.
|
This stock is classified in "As New" condition, but the external packaging
may be tatty. These units are either lost in transit or user 14 Day returns (usually because customer has ordered wrong thing, or
has been sent wrong item or item missing from box....) All items are retested, re-inspected, any missing items replaced and repacked
to ensure they are in "As New" condition.
We offer a 90 Day RTB Warranty on this item.
|
A Vat invoice will be provided with Vat Shown separately. |
Ref : CCTVCamWiN04GJ |
EAN 5026686059908 |
|
