Technical Data - Weatherproof CCD Colour IR Camera 4~9mm VariFocal Manual Zoom Lens N23GB

Established Since 1992

Supplier of Quality new and refurbished
Brand Name PC related products.

Why Buy From 6thplanet ?
We are renown for fast and efficient service.
Product are usually dispatched on the same day payment is received.

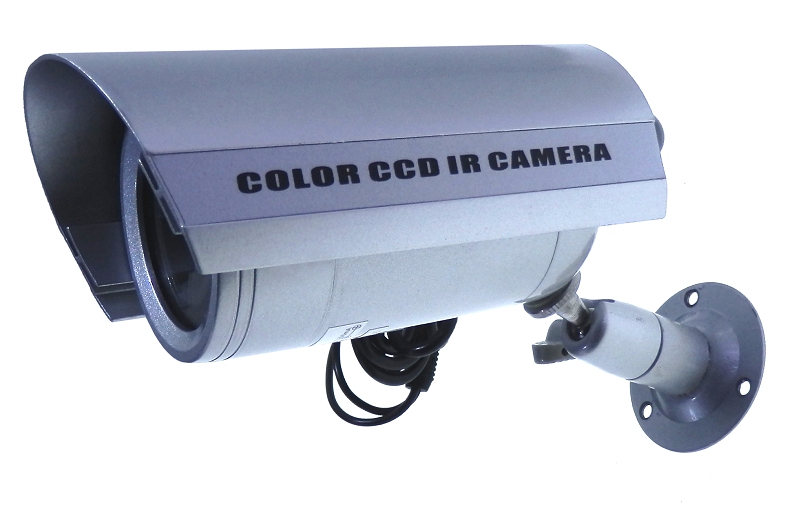

Weatherproof CCD Colour IR Camera 4~9mm VariFocal Manual Zoom Lens

Professional quality colour images with varifocal capability. Provides a long night vision range that is suitable for monitoring open areas of the home or workplace through the day or night.

High quality colour images with manual zoom and focus capability
16-infrared LED's automatically switch on at dusk to provide up to 15 meters night vision
Varifocal 4~9mm lens with convenient manual zoom and focus adjustment
Waterproof case enables indoor and outdoor use
Ceiling or wall mountable
Connects to any TV, monitor, VCR, or DVR for viewing and recording
An easy to use home, office or business security solution

Supplied items - Camera Camera mounting bracket 18m extension cable BNC to RCA adaptor Camera power supply
Technical specifications:
Sensor type:	1/4-inch Sharp colour CCD
Viewing angle:	35° - 70°
Lens focus:	Varifocal 4 - 9mm
Electronic shutter:	auto 1/50 second - /10,000 second
TV system:	PAL, 50Hz
Resolution:	350 TV lines
Video output:	1Vp-p 75Ω
Number of LED's:	16pcs x High Power 5mm LED's
Night vision range:	up to 15m
Minimum illumination:	0 lux with IR on
Signal noise ratio:	>50dB
Power consumption:	4.2W (IR on) / 1.8W (IR off)
Power supply:	DC 12 V
Output power:	300mA (IR on) 150mA (IR off)
Gain control:	automatic
Use:	Outdoor or Indoor
IP rating:	IP67
Video connections:	BNC connector
Operating temperature:	-20°C - +60°C
Dimensions:	77(l) x 134(dia.) mm
Weight:	1.37kg

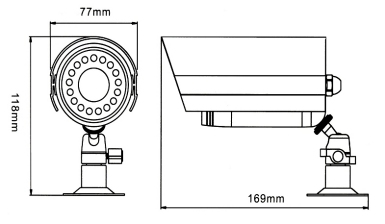

Dimensions

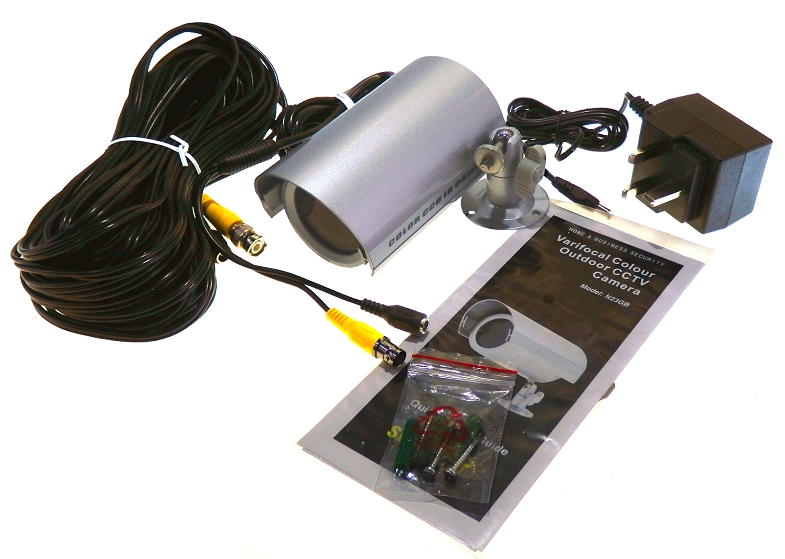

Kit - Weatherproof CCD Colour IR Camera 4~9mm VariFocal Manual Zoom Lens

This stock is classified in "As New" condition, but the external packaging may be tatty. These units are either lost in transit or user 7 Day returns (usually because customer has ordered wrong thing, or has been sent wrong item or item missing from box....) All items are retested, re-inspected, any missing items replaced and repacked to ensure they are in "As New" condition.
We offer a 90 Day RTB Warranty on this item.

A Vat invoice will be provided with Vat Shown separately.	Ref : CCTVCamVariN23GB
	EAN 5026686056983
