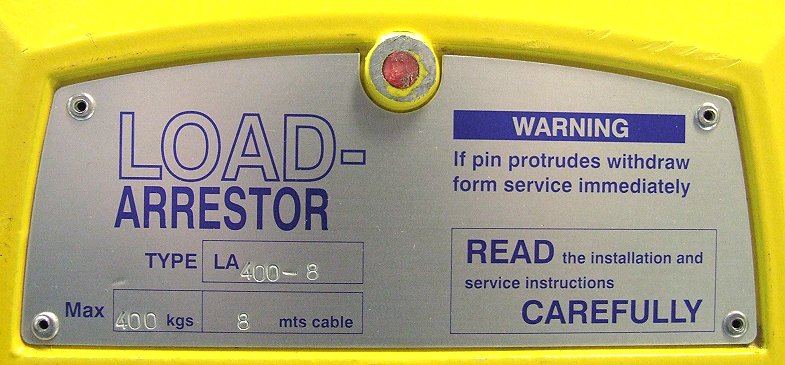

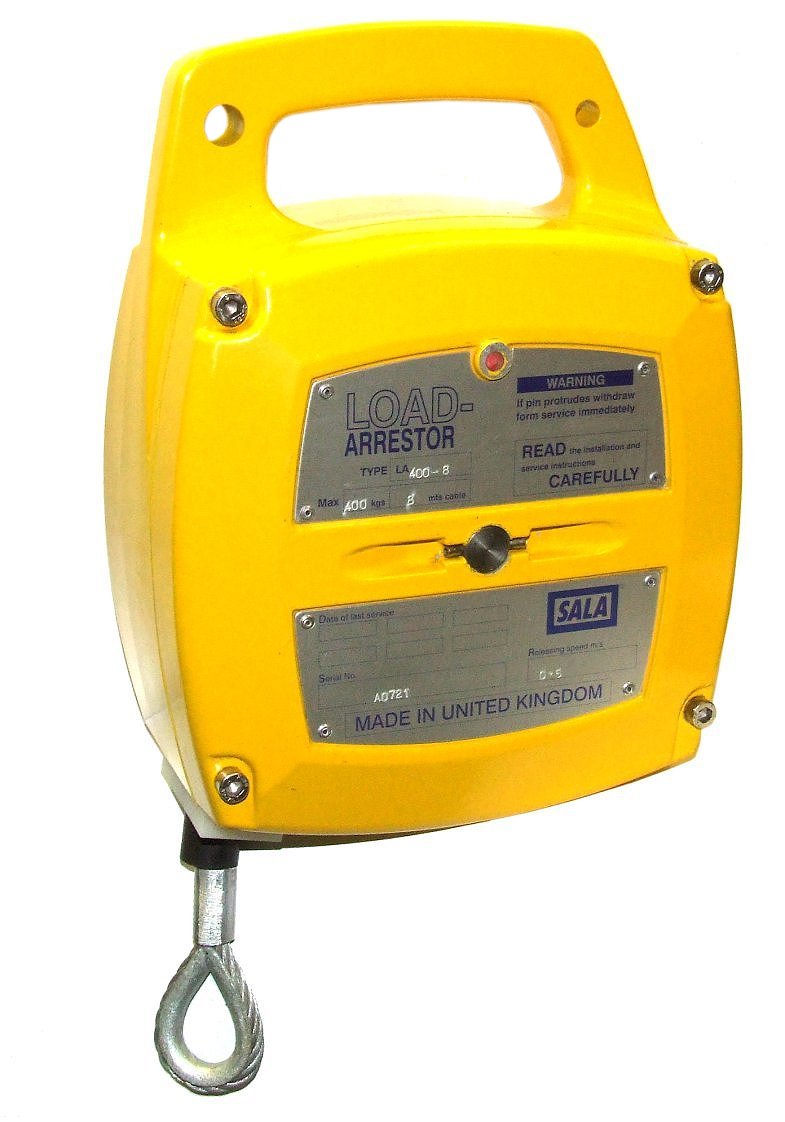

| Sala LA400-8 Load Arrestor 400Kg / 8 Meter cable - New |
| |
|
|
|
Sala : Load Arrestor, maximum load is 400Kg
(880 lbs), length of cable is 8 Meters (26 feet), Inertia
activated brake. Shock absorbing system. 6mm self retracting steel cable. Meets or exceeds all applicable industry standards including
OSHA and ANSI. Protect valuable equipment and materials with SALA's sturdy, self-contained backup load arrestors. They are designed
and engineered to completely stop a dropping load if it breaks free from the main support unit.
Think what you are doing - Example, A small aircraft turbine may only weigh 100lbs or so, Easily man-Handelable .....
But WHAT IF YOU DROP IT !! £100,000 - £200,000- ?? is it worth the risk. Climbing up and down a ladder? OK the ladder is secure,
But what if it is you that slips?
Sala Features
- Load Arrestor, maximum load is 400Kg (880 lbs), length of cable is 8Meters
(26 feet), Inertia activated brake.
- Shock absorbing system. 3/16" self retracting steel cable.
- Meets or exceeds all applicable industry standards including OSHA and ANSI.
- Protect valuable equipment and materials with sturdy, self-contained backup load arrestors.
- Designed to completely stop a dropping load if it breaks free from the main support unit
|
| Model |
Capacity |
Minimum Load (kg) |
Cable Length (m) |
Brake Activating Speed (m/s) |
Rope Dia. (mm) |
Rope M.B.S. (kN) |
Max Stopping Distance (mm) |
Minimum Anchorage Capability (kN) |

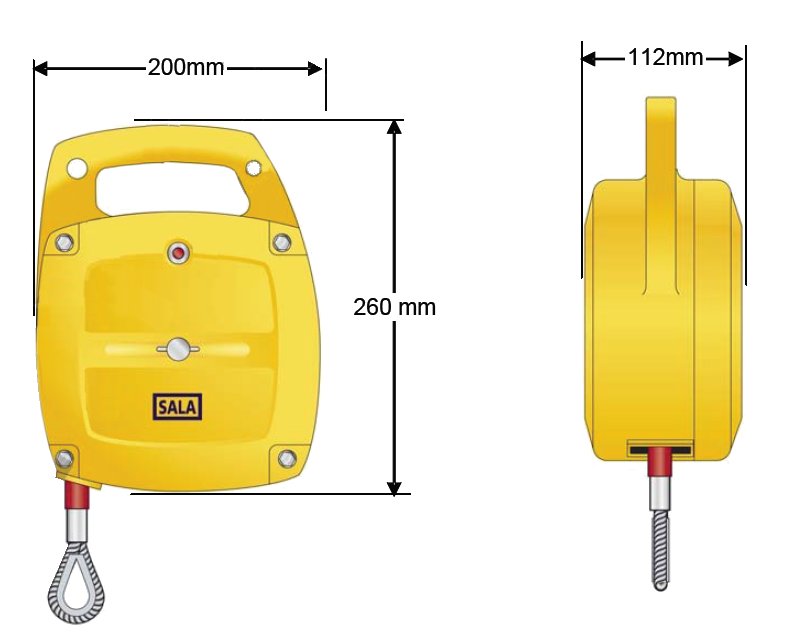

Approx. Dimensions (mm) |
Weight (kg) |
| KD4PLA4008 |
400kg |
2.5 |
8 (1- fall) |
0.5 std (0.33 or 1 - special) |
6 |
24.0 |
1000 |
22.8kN |
200 x 260 x 112 |
8.5 |
|
|
|
|
The Sala range of Load Arrestors are safety devices used in conjunction with lifting devices, such as cranes and hoists.
- The minimum temperature is -5ºC and the maximum temperature is 100ºC.
- Senses a descent speed in excess of 0.5m/sec and automatically engages.
- Decelerates and stops the lowering of The suspended load within 1m.
- Absorbs the shock forces.
Description
- The Load arrestor provides independent protection that will arrest the fall of a load in the event of the primary system failing
and, being completely independent of the primary lifting system it reduces the risk of equipment damage and protects personnel in
and around the danger zone.
- Protect loads upto 400kg.
- 8m of wire cable length.
- The load arrestor is installed adjacent to the primary lifting device and fixed to a suitable anchorage point.
- It's retractable steel cable is then secured to the load.
- The wire rope is attached to the arrestor via an internal spring loaded drum that keeps the rope under a constant light tension
yet allows unrestricted movement of the protected load.
- In the event of a failure of the primary lifting device that allows the load to fall or descend too quickly, the arrestor senses
a descent speed in excess of 0.5m/sec and automatically engages an internal inertia-activated mechanical brake that acts on the rope
drum. This decelerates and stops the lowering of the suspended load within 1m and absorbs the shock forces.
Main Features
- Independent protection.
- Reduces the risk of equipment damage and protects personnel.
- Variety of standard cable lengths.
- Allows unrestricted movement of the protected load.
- Senses a fall speed in excess of 0.5m/sec and automatically engages.
- Stops the lowering of the suspended load within 1m.
- Absorbs the shock forces.
Applications
The Load Arrestors can be used in conjunction with a large variety of lifting devices, or protection of overhead loads:
- Cranes.
- Hoists.
- Lifts.
- Lighting rigs.
- Tools / equipment.
Technical specification
- Housing: Cast Aluminium.
- Finish: Painted.
- Cable: Galvanized.
- Individual serial numbers
|
|
|
Normal Retail ~ £1497 inc
|
|
Click
HERE for Pdf Spec
|
|
This stock is classified in ''Brand New but liquidated stock''.
We are selling this item by manufacturers part number and cannot provide any advice as to it's operation or function or installation - If
YOU don't know what it is, YOU don't need it!.
We offer a 90 Day RTB Warranty on this item.
|
