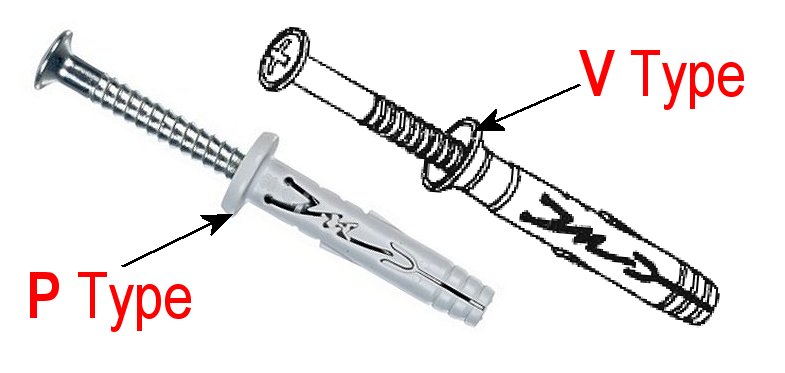

Spit Hit M Hammer Screw Anchor Various Types
37, 60 or 92mm
5-15/37P 050117, 8-30/62V 050134,
8-60/92V 050135, 8-60/92P 053029.
|
| |
|
|
The only hammer screw anchor
designed for fixing into both solid and hollow substrates. Pre-expansion
design guarantees correct installation.
See Table below for available options highlighted
in yellow |
|
Features & Benefits
Technical Specification
- By hammering in the fixing, the drive nail pushes against
the pre-expansion collar until the sleeve is fully located. Further hammering
or tightening the screw causes the sleeve to expand. When point of contact
is made in the hole the screw is drawn in towards the fixing until flush
with the fixture surface.
Material
- Sleeve: polyamide 6 is resistant to weathering, ageing
and rotting. It can withstand temperatures from -20ºC to +60ºC. It has
good electrical insulation properties. It has high tensile and compressive
strength and is largely resistant to chemical attack.
- Screw: Zinc plated 5μm / A4 Stainless steel.

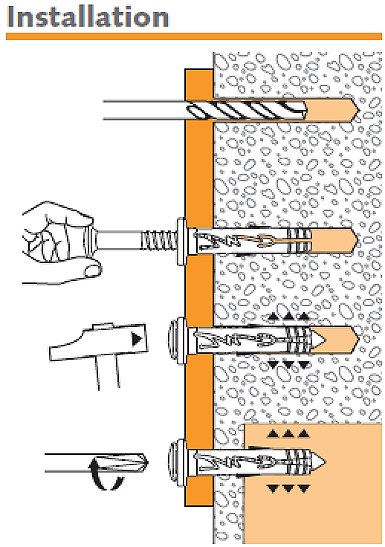

Installation
- Drill a hole through the part to be fixed according
to the diameter of the fixing, blow out dust. If the fixture thickness
is less than the maximum given in the table below, the hole depth has
to be increased accordingly. THEN EITHER - Insert the anchor by hand as
deep as possible. Tap on the expansion nail to obtain the complete setting
of the anchor and until the head of the nail comes into contact with the
flange of the sleeve. OR - Inserting the anchor by hand until contact
of the flange with the part to be fixed. Expand by screwing with a screw
driving machine and suitable pozidrive bit.
|
Applications
- Drywall track and brackets
- Electrical installations
- Insulation supports
- Battens / sole plates
- Conduit clips
- Boxes
- Trunking
- Skirting boards
- Computer floor pedestals
- Brackets
- Metal frames
- Collars
|
|
|
Box Qty: 100/200, Bag Qty : 10
Click HERE
for Pdf Spec
 |
|

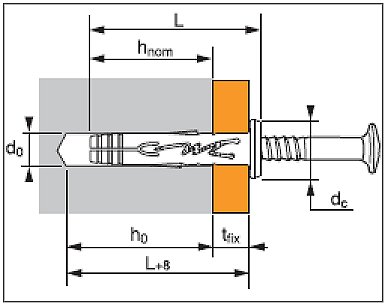

Eurocode
|
Description |
Length
|
Drill
|
Max Fixture Thickness
|
Effective Embedment
|
Box Qty
|
|
050116
|
5 - 5 - 27P - Spit Hit
M - Zinc Plated Drive Screw |
27mm
|
5mm
|
5mm
|
26mm
|
200
|
|
050118
|
6 - 5 - 32P - Spit Hit
M - Zinc Plated Drive Screw |
32mm
|
6mm
|
5mm
|
28mm
|
200
|
|
050117
|
5 - 15 - 37P - Spit
Hit M - Zinc Plated Drive Screw |
37mm
|
5mm
|
15mm
|
24mm
|
200
|
|
050119
|
6 - 12 - 39P - Spit
Hit M - Zinc Plated Drive Screw |
39mm
|
6mm
|
12mm
|
28mm
|
100
|
|
050123
|
8 - 10 - 42V - Spit
Hit M - Zinc Plated Drive Screw |
42mm
|
8mm
|
10mm
|
39.5mm
|
100
|
|
050121
|
6 - 25 - 52P - Spit
Hit M - Zinc Plated Drive Screw |
52mm
|
6mm
|
25mm
|
28mm
|
100
|
|
050131
|
6 - 25 - 52V - Spit
Hit M - Zinc Plated Drive Screw |
52mm
|
6mm
|
25mm
|
28mm
|
100
|
|
050134
|
8 - 30 - 62V - Spit Hit M - Zinc Plated Drive
Screw
|
62mm
|
8mm
|
30mm
|
39.5mm
|
100
|
|
050122
|
6 - 40 - 67P - Spit
Hit M - Zinc Plated Drive Screw |
67mm
|
6mm
|
40mm
|
28mm
|
100
|
|
050135
|
8 - 60 - 92V - Spit Hit M - Zinc Plated Drive
Screw
|
92mm
|
8mm
|
60mm
|
39.5mm
|
100
|
|
053029
|
8 - 60 - 92P - Spit Hit M - Zinc Plated Drive
Screw
|
92mm
|
8mm
|
60mm
|
39.5mm
|
10
|
|
050136
|
8 - 80 - 112V - Spit
Hit M - Zinc Plated Drive Screw |
112mm
|
8mm
|
80mm
|
39.5mm
|
100
|
|
050137
|
8 - 100 - 132V - Spit
Hit M - Zinc Plated Drive Screw |
132mm
|
8mm
|
100mm
|
39.5mm
|
100
|
|
|
|
This
stock is classified in ''Brand New but old stock'', The external packaging may
be tatty.
We are selling this item by manufacturers part number and cannot provide any
advice as to it's operation or function or installation - If YOU don't know
what it is, YOU don't need it!.
|
|
A Vat invoice will be provided with Vat Shown separately. |
Ref
: InFixSpitHit |
EAN
Box 050117 3439510501177
EAN Box 050134 3439510501344
EAN Box 050135 3439510501351
EAN Bag 053029 3439510530290 |
|
|
