Avtech Eagle Eyes 500GB 4 CH H.264 Network CCTV DVR, 2x CCD Cameras, iPhone Viewing
Features:- iPhone / Smart Phone Viewing, 100 iPs, Network, Ready to Go Kit


Quality CCTV solution, with 2 high quality CCD weatherproof night vision cameras and 500GB 4 channel H.264 Network DVR, allowing easy expansion up to a 4 camera system if required. Easy to use remote viewing on your phone, you will never miss a thing and with high quality video and twice the amount of real-time recording. Protect your office, home, premises, and easily back up your recordings to USB stick. User-friendly graphics interface with remote control. See Live demo below
Features Advanced DVR with remote access via your mobile phone Monitor and record your office, home or premises from anywhere 4 Channel H.264 High Compression AV-Tech Network DVR Two High Quality CCD 420TVL weatherproof cameras with IR night vision Easy expansion to a 4 camera system 500GB of storage, idea for all your security footage requirements Mobile Surveillance with EagleEyes, Compatible with iPhone, BlackBerry, Windows Mobile, Symbian & Android Advanced monitoring with the iPhone or Android mobile phones via Eagle Eyes App (Free Download from Apple App Store / Google market place) Included 20 meters of extension cable per Camera Supports Mutiplex operation: live display, record, playback, backup and network functions Supports real-time internet remote viewing via Internet Explorer, Firefox, Chrome browsers Remotely monitor your video via the internet H.264 compression giving twice the amount of real time recording Digital quality recording Easy to operate GUI using remote control Advanced motion detection Scheduled and Motion triggered recording Time and date stamped footage Supports backup with USB flash disk

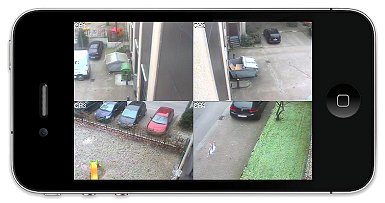

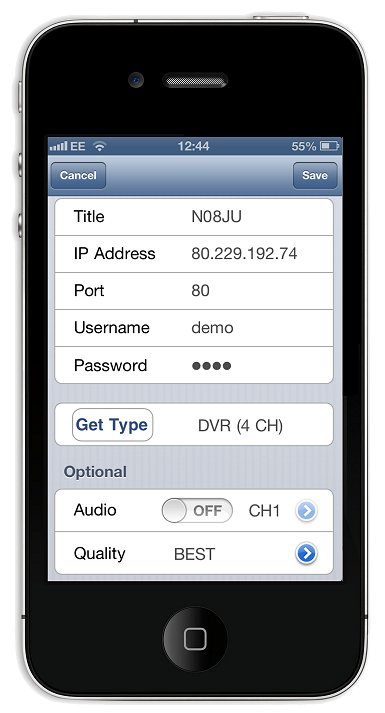

iPhone Access over the web Download the App EagleEyes-Lite (Free) or EagleEyes-Plus (£2.99). Enter the details as shown on the iPhone screen opposite The Username AND Password is 'demo' in lower case Press the button 'Get Type' Save the DVR profile. Select the device you have just saved and you should see our demo site... (all 4 video streams are the same). Please note this access is not guaranteed to be always available and will be suspended when we do not have this item in sale.

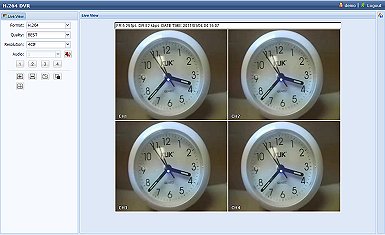

View on PC / Internet with Internet Explorer.

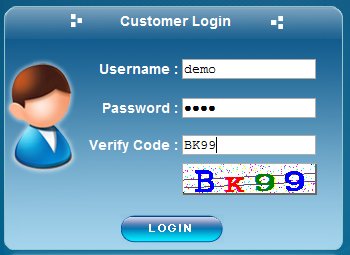

The password and Username is 'demo' and the Capatcha code is case sensitive. Click HERE Wait while the Active X controls load, You will need to Accept these in Explorer and windows firewall.

Web viewing, Different accounts can be set each account can have different access privilages.

What's in the box: 4 - channel DVR 500GB hard drive (pre-installed) 2 x Outdoor colour cameras 2 x 20m camera cables 2 x mounting brackets Remote Control 1 x Power adaptor (19Volts) 1 x Power regulator, 19V to 12V x 4 for Cameras Instruction manual Software & Manuals on CD

Getting Your own access - To get permanent access to a web server device such as a DVR you require one free STATIC IP Address. Your ISP may use static addresses or Dynamic IP addresses, if your ISP uses dynamic addresses you may need to use a DDNS (Dynamic Domain Name Server) account to translate your Dynamic address into a Static address. This is not a function is this DVR but common to all DVR and networking devices that you need to be permanently available on the web.
Technical specifications:
DVR:
Video System	NTSC / PAL (auto detection)
Video Compression Format	H.264
Video Input	4 channels (Composite video signal 1 Vp-p 75Ω BNC)
Video Output (BNC)	Main Monitor Output: for stable display
Audio Input / Output	4 audio inputs, 1 audio output (Mono)
Maximum Recording Rate (PAL)	Frame: 704x576 pixels with 25 IPS
	Field: 704x288 pixels with 50 IPS
	CIF: 352x288 pixels with 100 IPS
Image Quality Setting	SUPER BEST / BEST / HIGH / NORMAL
Hard Disk Storage	Fitted with 500Gb, Accommodates 1 SATA HDD (capacity up to 2TB)
Quick Search	Time / Motion / Alarm search mode
SATA Interface	Built-in
VGA Interface	Built-in (Output resolution up to 1600 x 1200)
Recording Mode	Manual / Timer / Motion / Alarm / Remote
Multiplex Operation	Live display / record / playback / backup / network operations
USB Mouse Control	YES
Motion Detection Area	16x12 grids per channel
Motion Detection Sensitivity	3 adjustable parameters for accurate detection
Pre-alarm Recording	YES
Backup Device	USB 2.0 flash drive / Network
Web Transmitting Compression Format	H.264
Ethernet	10/100 Base-T. Supports remote control and live view via Ethernet
Mobile Surveillance	YES (Including iPhone, BlackBerry, Windows Mobile, Symbian & Android)
Remote OS: Windows 7 / Vista / XP	CMS: Our self-developed and free software," Video Viewer
	Web Browser: Internet Explorer, Mozilla Firefox, Google Chrome & Apple Safari
	Media Player: QuickTime, Max. on-line user: 10
Network Protocol	TCP/IP, PPPOE, DHCP and DDNS
Remote Independent Operation	YES
Remote Event Download & Playback	YES
Event Notification	By FTP & E-Mail
IR Remote Control	YES (IR receiver built-in), IR Remote Included
Picture Zoom	2X digital zoom
PTZ Control	YES
Alarm I/O	4 inputs, 1 output
Key Lock (Password Protection)	YES
User Level	Administrator & Operator
Video Loss Detection	YES
Camera Title	Supports up to 12 letters
Video Adjustable	Hue / Saturation / Contrast / Brightness
Date Display Format	YY/MM/DD, DD/MM/YY & MM/DD/YY
Daylight Saving	YES
Power Source ( 10%)	DC 19V
Power Consumption ( 10%)	< 42 W
Operating Temperature	10°C ~ 40°C (50°F~104°F)
Dimensions (mm)**	343(W) x 59(H) x 223(D)
System Recovery	System auto recovery after power failure
Cameras	KPC138DT
Pick up Element	1/3 colour CCD image sensor
Number of Pixel	512(H) x 492(V) / 512(H) x 582(V)
Resolution	Standard
Min. Illumination	0.05 Lux / F2.0, 0Lux (IR ON)
IR LED	21 units
Effective Range	Up to 15 Meters
S/N Ratio	More than 48dB (AGC off)
Electronic Shutter	1/60 (1/50) to 1/100,000 sec.
Lens	3.6mm / F2.0
Lens Angle	92.6°
IRIS Mode	AES
White Balance	ATW
Video Output	1.0 Vp-p composite, 75Ω
Power Source ( 10%)	DC12V
Current Consumption ( 10%)	70mA (IR OFF), 260mA (IR ON)
Dimensions (mm)**	140.19(L) x 55.2(W) x 79.58(H)
IP Rating	IP67

This stock is classified in "As New" condition, but the external packaging may be tatty. These units are either lost in transit or user 7 Day returns (usually because customer has ordered wrong thing, or has been sent wrong item or item missing from box....) All items are retested, re-inspected, any missing items replaced and repacked to ensure they are in "As New" condition.
We offer a 90 Day RTB Warranty on this item.

A Vat invoice will be provided with Vat Shown separately.	Ref : CCTVDvr4N08JUKit2
	EAN 5026686083859
